Interlocking around trees in the GTA is one of the most common planning mistakes homeowners make. The tree looks manageable today. The roots underground are already wider than the canopy above, and they are still growing. Getting this wrong means displaced pavers, a compromised base, and a choice between the tree and the surface within ten years. Getting it right means both can coexist for decades.
Can you install interlocking around tree roots?
Yes, but success depends on the tree species, root location, drainage conditions, and how the base is constructed. In the GTA, mature trees often require flexible base sections, root barriers, permeable pavers, or layout changes to reduce future paver movement. Where large surface roots already occupy the planned installation area, redesigning the layout or removing the tree may be the only durable long-term answer.
Can You Install Interlocking Around Mature Trees?
Yes, in most cases. If the tree is healthy, the structural roots are protected, and the installation is designed with root growth in mind, interlocking and trees can coexist for decades. The key is what happens below the surface before the first paver goes down.
When the tree is manageable, modifications that make installation work include:
- Flexible base sections that allow roots to move through rather than push up
- Root barriers installed at sufficient depth to redirect growth away from the base zone
- Permeable pavers that reduce root stress by maintaining moisture and oxygen exchange below
- Increased clearance from the trunk and critical root zone

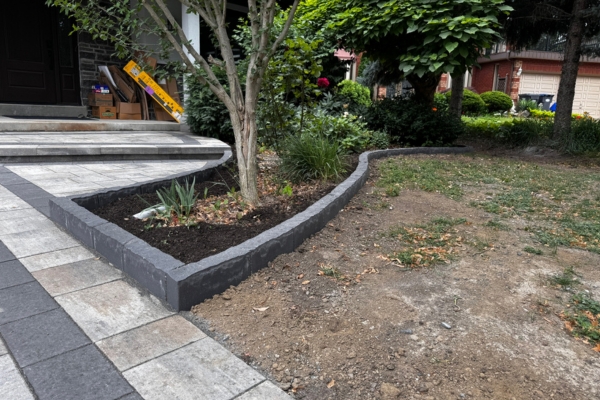

- Layout redesign that routes the surface around the worst of the root spread
When large surface roots already occupy the installation area, no base modification fully resolves the conflict. Redesigning the project or removing the tree before paving becomes the more honest recommendation.
Key Takeaways
- Tree roots extend two to three times beyond the canopy drip line
- Root barriers redirect roots, they do not stop them. Depth matters more than the barrier itself
- Flexible base sections near drip lines use angular stone without geotextile, allowing roots to move through rather than push up
- Permeable pavers reduce root stress by allowing moisture and air exchange to the root area below
- Surface roots within six feet of a planned paved edge are a warning sign that removal may be the only durable answer
- Resetting displaced pavers without addressing the root below is a fix that lasts one to two seasons
Why Trees and Interlocking Create a Long-Term Conflict
Most homeowners picture roots going straight down. In reality, the majority of a mature tree’s feeder roots sit in the top 300 to 600mm of soil, spreading outward in all directions. Arborists generally estimate that roots extend at least as far as the canopy drip line, and often two to three times beyond it. A tree with a 5-metre canopy spread likely has roots reaching 10 to 15 metres from the trunk.
The conflict plays out on two fronts. First, a compacted aggregate base blocks moisture and oxygen from reaching the root area, creating stress that drives roots outward and upward more forcefully in search of both. Second, roots exert increasing upward pressure as they thicken over time. A root passing under a paver at 25mm diameter causes nothing. At 75mm five years later, the paver above it rises noticeably. At 150mm a decade on, it can displace the entire base section. The same dynamic connects to how moisture trapped in a base behaves through winter, compounding the problem on clay-heavy GTA lots.
Trees rarely displace pavers because they are searching for water. They displace them because woody roots naturally increase in diameter every year. As that radial growth occurs beneath the bedding layer, upward pressure gradually exceeds what the interlocking system can accommodate. The tree is not malfunctioning. It is doing exactly what trees do. The problem is that nobody planned for the tree it would become.
From the field
On older Toronto and Markham properties, we most often see mature silver maples displacing walkways that were installed 10 to 15 years earlier. The tree looked small and manageable when the work was done. The installation was designed for that tree, not the one it became. In many cases, redesigning one section of the surface at the outset would have prevented years of repeated repairs.
Common GTA Tree Species and Their Impact on Interlocking
| Species | Risk Level | Root Behaviour | Recommended Approach |
|---|---|---|---|
| Silver Maple | Very High | Shallow, wide, fast-spreading | Layout redesign or flexible base. Barriers rarely hold long-term. |
| Norway Maple | High | Dense, surface-seeking roots | Deep root barrier plus annual inspection |
| Willow / Poplar | Very High | Extremely aggressive, moisture-seeking | Remove before paving in most cases |
| Oak | Medium | Slower growth, deeper taproot | Flexible base with adequate trunk clearance |
| Sugar Maple / Elm | Lower | Moderate spread, manageable with planning | Standard installation with clearance and inspection plan |
| Honey Locust / Spruce | Low | Deeper roots, less lateral surface spread | Standard installation with adequate clearance |
Root Barriers: Do They Work and When Should You Use Them?
A root barrier is a rigid HDPE panel installed vertically between the tree and the paved area. Roots will eventually find a path around or beneath it. The barrier redirects them downward and away from the base zone for long enough to matter.
Root Barrier: Key Facts
Minimum Depth
600mm
900mm preferred on clay-heavy lots
Expected Lifespan
5 to 15 years
Depends on species and growth rate
Best For
Young to mid-age trees
Oaks, sugar maples, elms
Poor Choice For
Mature silver maples
Willows, poplars, any surface-rooted tree
When root barriers are worth installing
- The tree is established but not yet mature, with no surface roots visible near the planned paved edge
- At least 1.5 to 2 metres of clearance exists between the trunk and the nearest paved edge
- The species has a moderate growth rate: oaks, sugar maples, elms rather than silver maples or poplars
- The barrier can reach full depth without severing major structural roots
When barriers are not the answer
- Surface roots are already visible within six feet of the planned paved area. The roots are ahead of where a barrier would go
- The tree sits within 1 metre of the paved edge
- Installation would require cutting roots larger than 50mm in diameter
- The species is a known fast spreader: silver maple, poplar, or willow
How to Build Flexible Base Sections Near Tree Drip Lines
When paving must happen within or near the drip line, standard base construction needs to change. A fully compacted, geotextile-lined base concentrates root pressure rather than distributing it. The root cannot move through, so it pushes up. A flexible base section is designed to let roots move through gradually without causing sudden surface displacement.
No geotextile fabric in the root area
Standard fabric is a physical barrier roots push against rather than through. Omitting it in the root area allows roots to penetrate the base gradually rather than generating concentrated upward force. Surface distortion happens more slowly and is easier to manage.
Angular stone with larger void space
Coarser angular crushed stone creates more void space within the base than standard aggregate. Fine root tips grow through those voids rather than pushing against a solid layer. The base stays structurally sound while offering less resistance to root penetration.
Defined transition joint
The flexible section covers the drip line area. Beyond it, standard base construction resumes. A defined joint in the paver layout separates the two sections so movement near the tree does not propagate across the rest of the surface.
This approach manages root interaction, it does not eliminate it. The section nearest the tree will need more frequent inspection and occasional paver resetting compared to areas further out. That is a known and acceptable maintenance expectation for tree-adjacent paving, and it should be communicated clearly before the project starts.
Permeable Pavers as a Tree-Friendly Option
When a paved surface blocks moisture and oxygen from reaching the root area, the tree responds by sending roots outward and upward more forcefully. Permeable pavers reduce that stress directly by allowing water and air to pass through the surface into the soil below.
Permeable systems use open-jointed pavers or pavers with built-in voids, installed over a permeable aggregate base. Rainfall passes through rather than running off. The area beneath receives moisture more similarly to an unpaved surface.
| Factor | Standard Interlocking | Permeable Interlocking |
|---|---|---|
| Moisture to root area | Blocked | Maintained through surface |
| Oxygen exchange | Reduced under compacted base | Better through open base structure |
| Root stress | Higher, drives lateral spreading | Lower, less pressure to spread |
| Long-term displacement risk | Higher near drip line | Lower, though not eliminated |
| Cost | Standard | Higher |
Permeable pavers are not a complete solution where surface roots are already present. But for younger trees or first-time paving near a root area, they meaningfully reduce the long-term tension between the surface and what is growing below it.
Planning for Future Root Growth Today
The most common mistake in tree-adjacent interlocking is designing for the tree as it looks today rather than as it will be in ten years. A young maple two metres from the planned driveway edge looks manageable. A decade of growth in Ontario’s climate changes that picture significantly.
Before any design is finalised, these questions need answers specific to the tree on your lot.
What species is the tree and what is its typical mature root spread in Ontario conditions?
Is the tree protected under municipal bylaws? Many GTA municipalities require a permit before removing or significantly pruning trees above a certain trunk diameter.
Can the layout be adjusted to give the tree more clearance, even at the cost of a smaller or differently shaped surface?
Is the planned surface vehicle-rated or pedestrian only? Vehicle load near roots significantly accelerates base disruption.
What is the realistic maintenance expectation for the root area section of the surface over ten years?
Young trees give you options. A fast-growing species planted close to a planned surface and left unaddressed is the most expensive outcome by a significant margin. Decisions made now, before the tree is protected under local bylaws, are always cheaper and simpler than decisions made later.
When a Tree Has to Come Down Before the Pavers Go Down
This is the conversation most contractors avoid. But it is sometimes the only honest answer. Tree removal before paving is warranted when surface roots are already visible within six feet of the planned paved area. The root system has already reached the zone the base needs to occupy. No barrier or flexible base section resolves that. They slow it.
Signs removal is the practical answer
- Large surface roots over 50mm in diameter are visible within 1.5 to 2 metres of the planned paving edge
- The trunk sits within 1 metre of where the paved area needs to be
- The species is a known fast spreader at or near maturity
- Previous paved surfaces on the same lot have already been displaced by this tree
- The tree is in poor health regardless of the paving question
Check Municipal Bylaws Before Anything Else
Many GTA municipalities including Toronto, Mississauga, Markham, and Richmond Hill require a permit before removing any tree above a specified trunk diameter, typically 30 to 50cm at breast height. Removing a protected tree without a permit carries significant fines. Check with your municipality before any removal decision, and factor permit timelines into the project schedule. Your contractor should raise this proactively.
What to Do When Roots Have Already Displaced Your Pavers
If pavers near a tree have already moved, the root has already done its work. What you do next determines whether you address the problem or reset it temporarily for the same outcome in two years.
Assess the root before lifting the pavers
Is it a single large root that crossed under the base, or multiple smaller roots distributed through the area? A single root may be manageable. Multiple fine roots throughout means the whole zone is compromised and needs a different approach than a simple reset.
Involve a certified arborist before cutting any root
Severing structural roots can destabilise a tree. An arborist identifies which roots can be cut safely and which cannot. On any mature tree adjacent to a structure or public space, this assessment is not optional.
Temporary fix vs permanent solution
Lifting the pavers, shaving the root flush with the base, and resetting is temporary. The root regrows to the same diameter within three to five years. A durable solution requires either removing the root system from the area, which typically means removing the tree, or converting that section to the flexible base design described earlier in this article.
Consider rerouting the surface design
In some cases, redesigning the surface to route around the root area is more cost-effective than fighting the tree repeatedly. A driveway or walkway that avoids the worst of the root spread performs better over ten years than one in direct conflict with it. Put this on the table before committing to a repair approach.
If you are already seeing early signs of surface movement near a tree, get an assessment before it progresses further into the base. And if a contractor quotes the job without discussing the tree, that is a flag worth taking seriously.
What Tree-Related Interlocking Work Typically Costs
Costs vary significantly by tree size, root extent, and how much of the base needs to be addressed. These are relative indicators, not quotes. Every situation is different and requires a site assessment before any number is meaningful.
| Scenario | Relative Cost | Notes |
|---|---|---|
| Reset affected pavers, no root work | Low | Temporary. Expect to repeat within 3 to 5 years. |
| Root barrier installation before paving | Moderate | Best value when done before the project starts. |
| Root pruning with arborist plus reset | Moderate | Requires arborist assessment before any cutting. |
| Flexible base rebuild in root zone | High | More durable long-term solution for ongoing root interaction. |
| Full reconstruction after major root damage | Very High | What happens when root interaction is ignored for too long. |
The pattern is consistent across every job we see. The earlier the root situation is addressed, the lower the cost. A root barrier installed before the project starts is almost always the cheapest intervention available. Full reconstruction after years of ignored displacement is almost always the most expensive, and by that point the tree conversation should have happened long before the first paver was ever laid.
Frequently Asked Questions
Questions homeowners ask about interlocking around trees that go beyond what the sections above cover.
How much clearance should there be between a tree trunk and the paved edge?
Minimum 1.5 to 2 metres for a young or medium tree, and 3 metres or more for a mature tree. Species, soil type, and growth rate all affect what is genuinely adequate on a specific lot.
Can tree roots damage an interlocking driveway?
Yes. As roots thicken beneath the base, they generate upward pressure that displaces pavers, disrupts bedding sand, and eventually shifts entire base sections. A root that causes no problem at installation becomes a significant surface issue within five to ten years on most established GTA trees.
How long before tree roots lift interlocking?
On a mature silver maple with roots already near the installation zone, visible movement can appear within one to three years. On a younger or slower-growing tree with a properly built flexible base, the timeline extends to eight to fifteen years. Species and base construction are the two biggest variables.
Does cutting roots during installation damage the tree?
Fine feeder roots can generally be cut without significant harm. Structural roots are different. Severing them can cause instability or failure in wind. Always get arborist input before any root cutting near a mature or protected tree.
Can permeable pavers protect tree roots?
Better than standard interlocking, yes. Permeable systems allow moisture and oxygen to pass through the surface into the soil below, reducing the root stress that causes upward and outward growth. They do not eliminate root interaction on mature trees, but they meaningfully reduce it.
Can an arborist help save both the tree and the interlocking?
Often yes. A certified arborist can assess which roots can be safely pruned, advise on tree protection zones during excavation, and determine whether the tree can tolerate the planned installation. Involving one before the project starts gives both the tree and the surface the best chance of coexisting long-term.
Have a Tree Near Your Planned Interlocking Area?
We assess root zones as part of every site visit. If a tree is going to affect your installation, we tell you before the project starts, not after the pavers go down.
